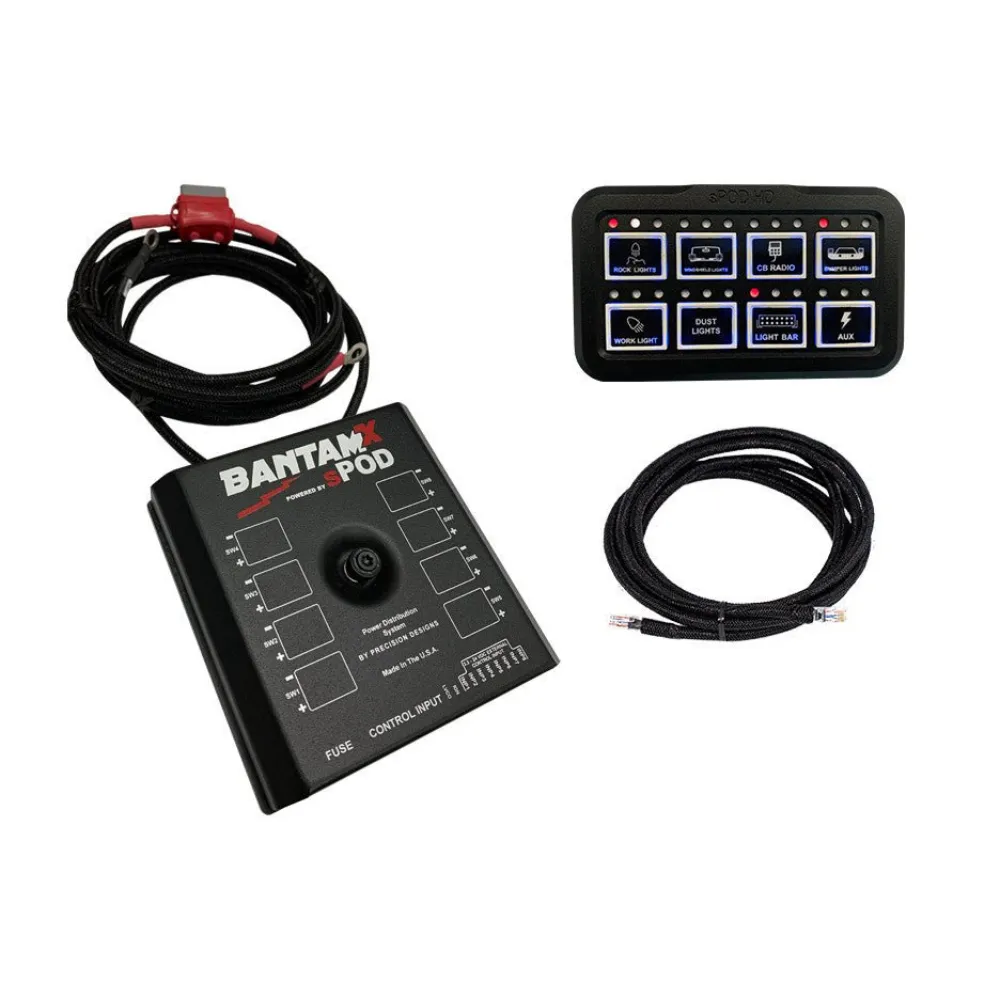

The sPOD BantamX HD is designed to save you hours of wiring and installation time, providing a clean, safe, and efficient way to power and control your 12/24VDC accessories. This compact, 8-circuit (expandable) control system eliminates the need for cutting, fishing wires into the cab, or tapping into the vehicle’s electrical system. Its small footprint offers endless placement options, making it the perfect overall solution for all your aftermarket electrical accessories with unmatched versatility.

Features

• Fully Programmable System: Digital controlled with 8 circuits rated at 30 amps each at 12.5 VDC.

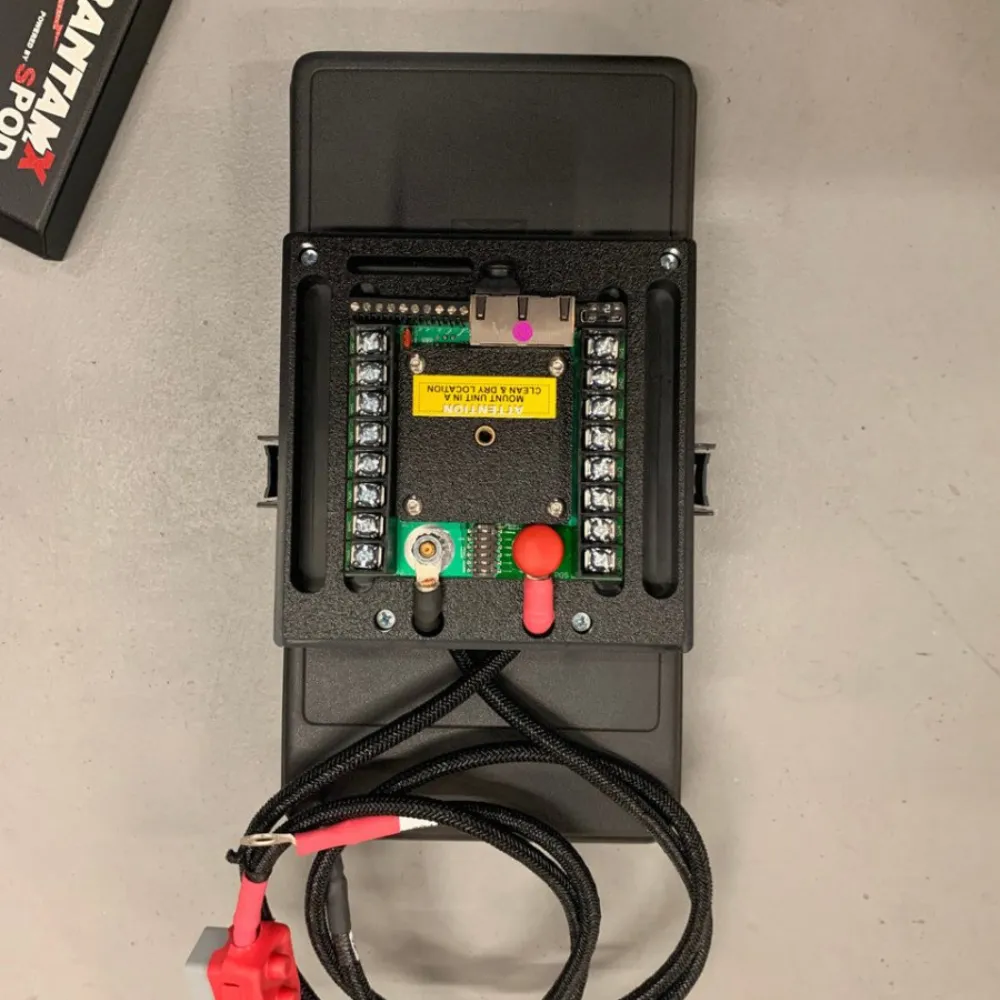

• Expandable and Efficient: 16-position terminal block for easy accessory attachment and 2 RJ45 controller ports for Ethernet cables.
• Battery Protection: Integrated low voltage cutoff (LVCO) with optional override and one ATM mini-style fuse for LVCO protection & reset.
• Self-Healing Protection: Failsafe system from 1.5 to 30 amps, with current-sensing MOSFETs controlled by a microprocessor (no fuses & relays).
• Heavy-Duty Construction: Nylon braided battery cables made from high-strand crosslinked copper wire with a silicone jacket.
• Versatile Voltage Operation: Compatible with both 12VDC and 24VDC systems.
• Remote Control Capabilities: Built-in Bluetooth for control and programming via the free sPOD mobile app.

Hardware

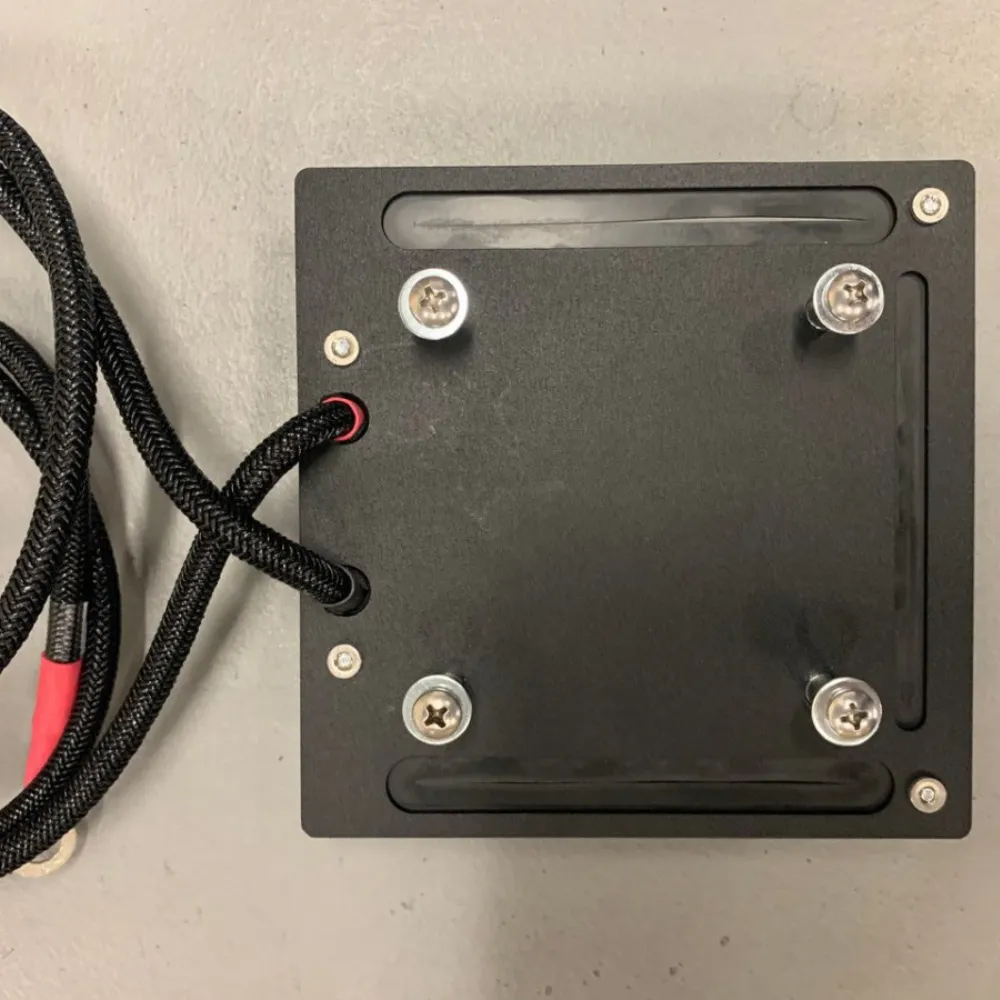

• Durable Build: Powder-coated steel base with a silicone gasket for weatherproofing.
• Easy Access: Aluminum lid with thumb screw fastening and silkscreened outlines for legend placement.
• Mounting Options: Universal and vehicle-specific mounts available, with a robust insulated base and cover.

Mobile App Features (Free)

• Customizable Switches: Each switch can be programmed for dimming, strobe, flash, momentary, and switch linking.
• On/Off Road Modes: Configure different modes of operation for various environments.

Pro-Series Mobile App Features (Optional Purchase)

• Advanced Control: Circuit timers, switch lockout, and programmable current limiting.
• High Initial Startup Current: Up to 65 amps for 5 seconds.
• Always-On Circuits: Maintain fault protection while keeping circuits always on.
• Deep Sleep Mode: Option to disable for uninterrupted operation.
• Auto Restart and Latch/Momentary Actions: Programmable for maximum convenience.

External Controller Options (Not Included)

• Compatibility: Works with third-party switches, computers, Arduino, Raspberry Pi, Alpine Audio systems KAC-001 head unit controller, sensors, thermostats, pressure switches, fan controllers, and more.

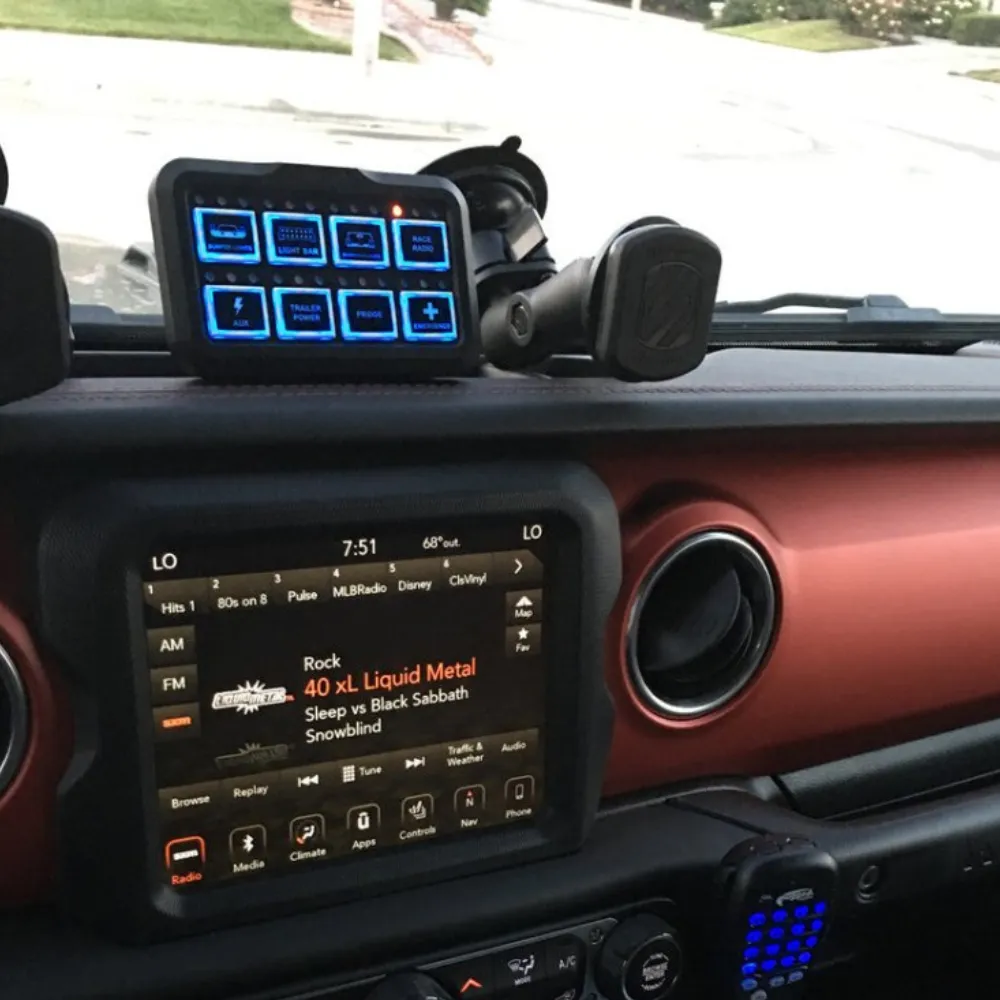

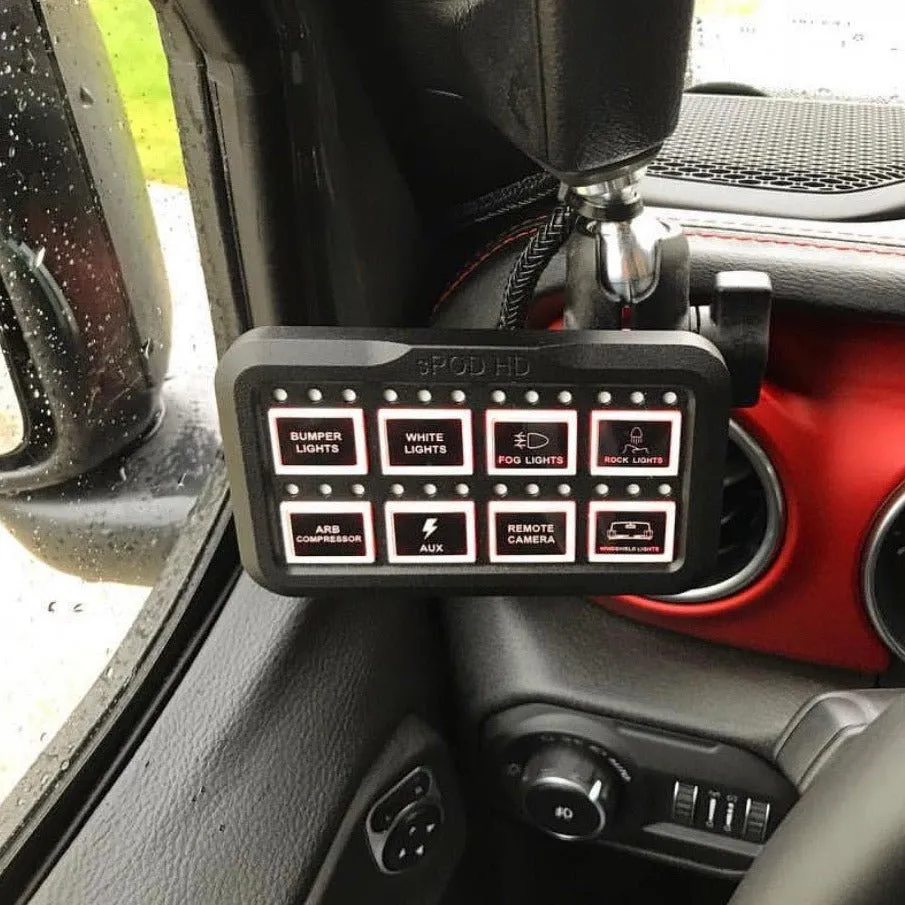

HD Control Panel

• Durable and Compact: Encased in billet machined aluminum, powder-coated black, with tactile silicone encapsulated switches.
• Weatherproof: Designed to withstand harsh environments.
• Compact Size: Measures 2-7/8"W x 4-7/8"L x 1/2" thick, smaller than an iPhone.
• Versatile Mounting: Universal back with pressed-in 1/4-20 studs for flat mounting, and a standard universal articulating mount.
• Connectivity: One RJ45 jack for communication with the BantamX, comes with a 10-foot CAT-6 Ethernet cable.
• Built-in Bluetooth LE: Allows programming and control via iPhone, iPad, or iPad Mini using the free sPOD app.
• Customizable Backlighting: RGB backlight color and intensity, with status lights for each switch.

Bluetooth Requirements

• App Access: Download the sPOD app from iTunes or Google Play Store.
• Device Compatibility: Bluetooth 4.0 compatible with Android devices running 8.0 Oreo (API 26) or later, and iOS 11 or newer, iPhone 7s or newer, iPad 2 or newer, iPad mini.
• Range: Bluetooth primarily for programming due to distance limitations; range varies from 5 to 15 feet.

The sPOD BantamX HD offers unmatched convenience and flexibility for managing your vehicle's electrical accessories. With its robust construction, programmable features, and easy installation, it's the ideal solution for any off-road enthusiast looking to streamline their electrical system. Order your sPOD BantamX HD today and take control of your adventure.
