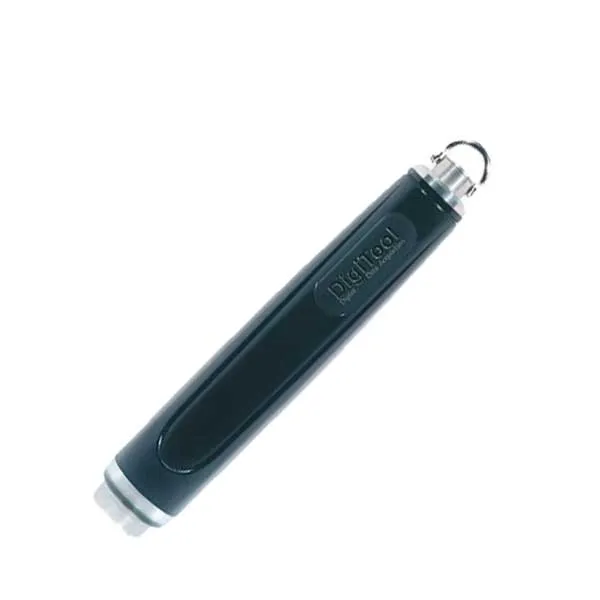

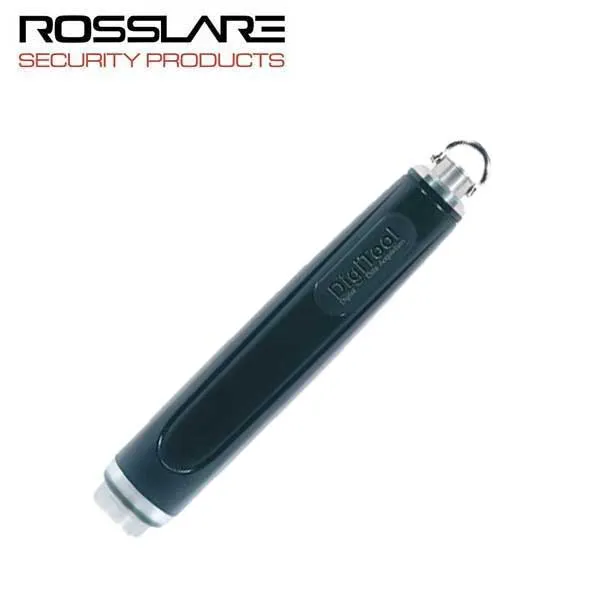

The GC-01 DigiTool Data Acquisition Reader is a handheld iButton data reader. Use this Reader during a guard patrol tour to conveniently read and store information from iButton location tags and event wallets. The reader can store up to 8000 time stamped readings. Using the DigiTool base unit, information from the reader can then be downloaded to a server computer running Rosslare's GS-01 DigiTool Reports Lite software.
Features:
- Low battery and memory full alerts by means of vibration, visual, and audio beeps
- Three modes of notification: 1. Built-in 360 LED array for increased visibility of valid iButton reads 2. Built-in vibrating motor for tactile read confirmation 3. Built-in buzzer for audio read confirmation
- High capacity rechargeable internal 1800 mAh Lithium-ion battery
- Highly-rugged and waterproof (meets IP-68 level tests)
- 9600 baud speed uploading/ downloading speed
Specifications:
| Construction | Polycarbonate and stainless steel housing |
| Operating Voltage | 3.0–3.6 VDC |
| Input Current |
Standby: 6 µA |
| Max Input Current | 21 µA |
| Uploading/Downloading Speed |
9600 baud speed |
| Number of Reads | Stores up to 8000 reads and time stamps |
| Battery | Internal Lithium-Ion 1800 mAh rechargeable battery for six month use or 300,000 readings |
| Battery Charging Time | Battery charges in three hours from empty to full |
| Buzz Sounder Indication | Internal sounder for audio verification |
| LED Indication | Four ultra-bright LEDs visual read validation 360 Degree LED viewing angle light-pipe |
| Data Read Speed | 0.1 seconds per read |
| International Safety and EMC | Complies with International Safety and Emissions Regulations |
| Operating Environment | Suitable for outdoor use (IP68 rated) |
| Dimensions | 175 x 33 mm (6.9 x 1.3 in.) |
| Manufacturer Warranty |
2-Year Limited Warranty |
