Overview

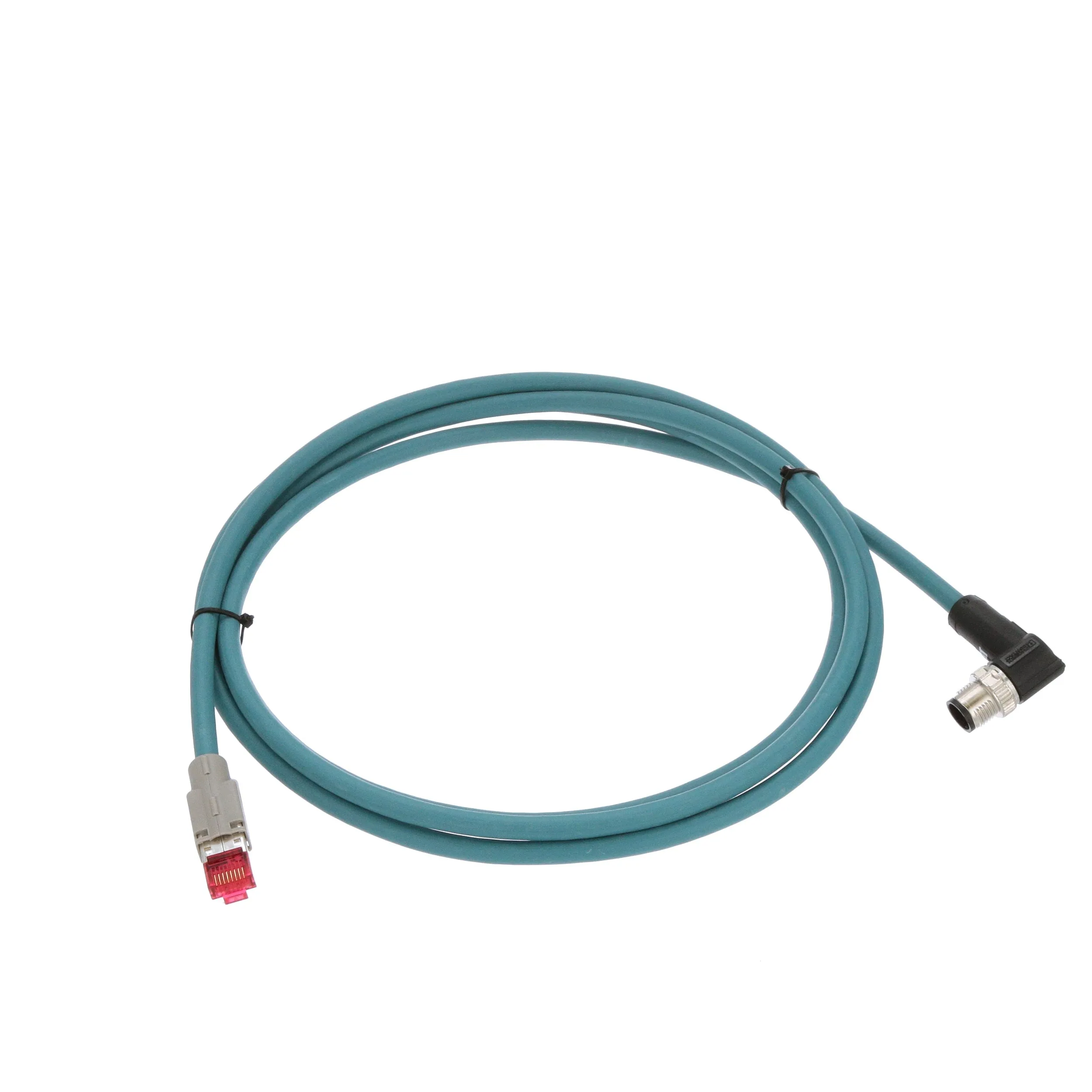

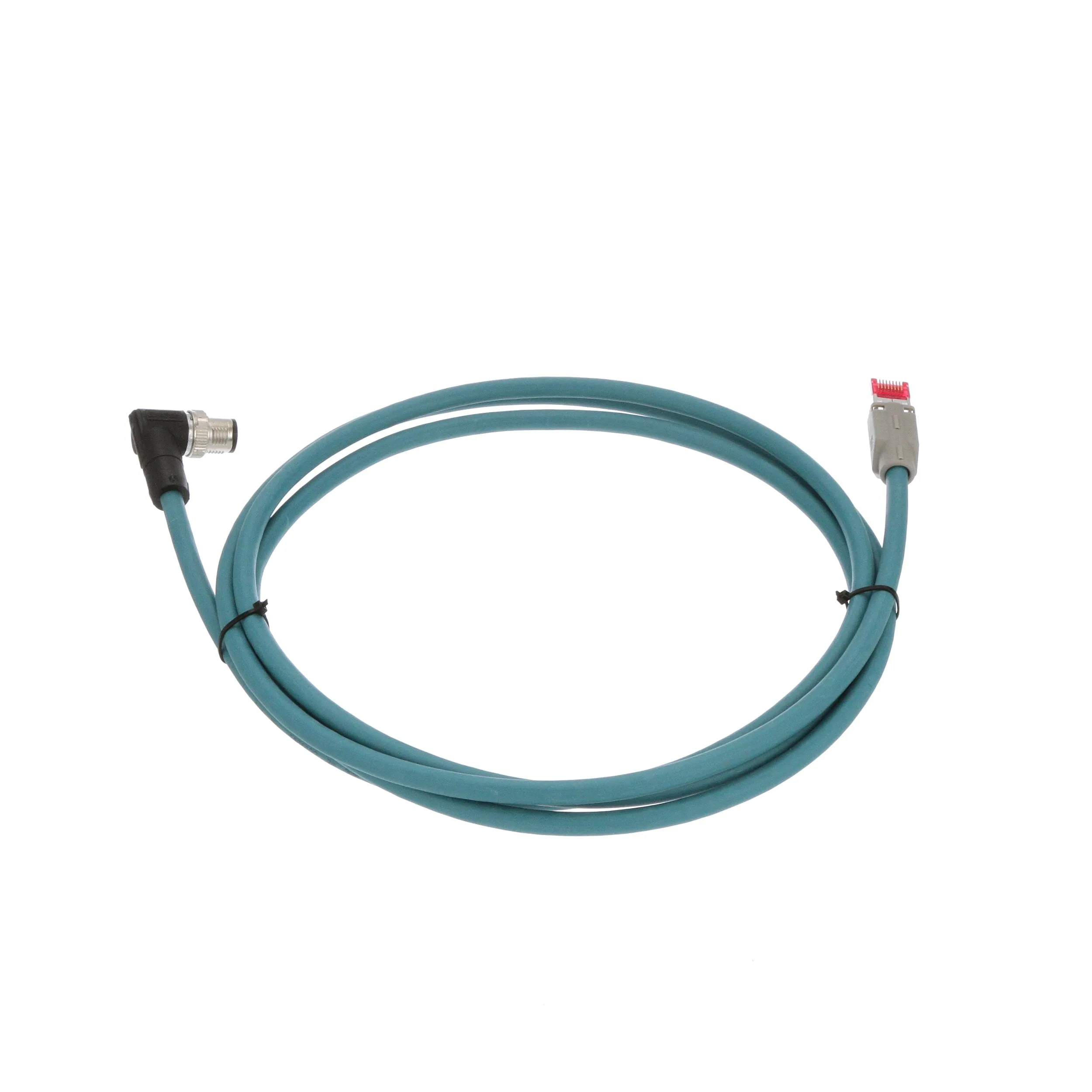

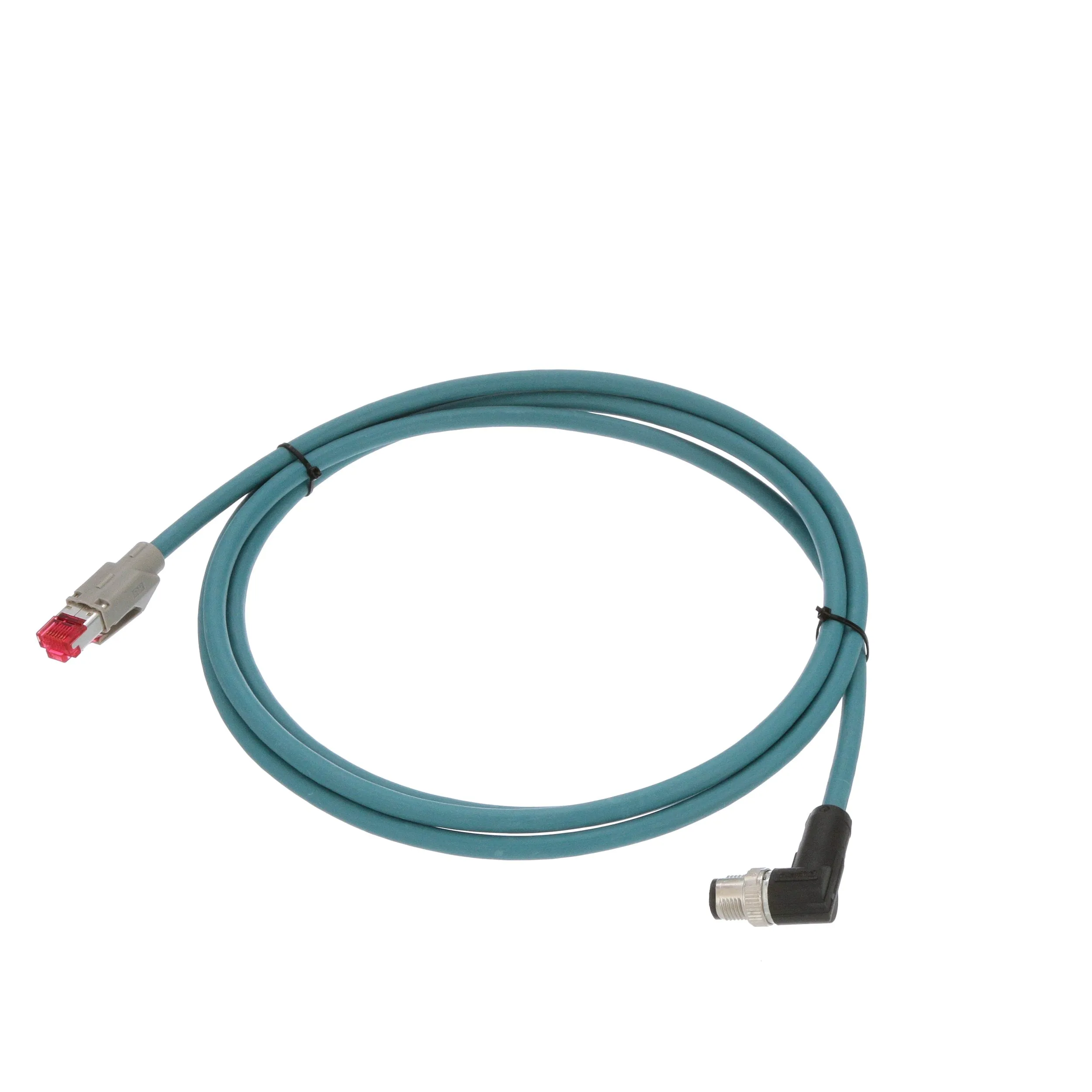

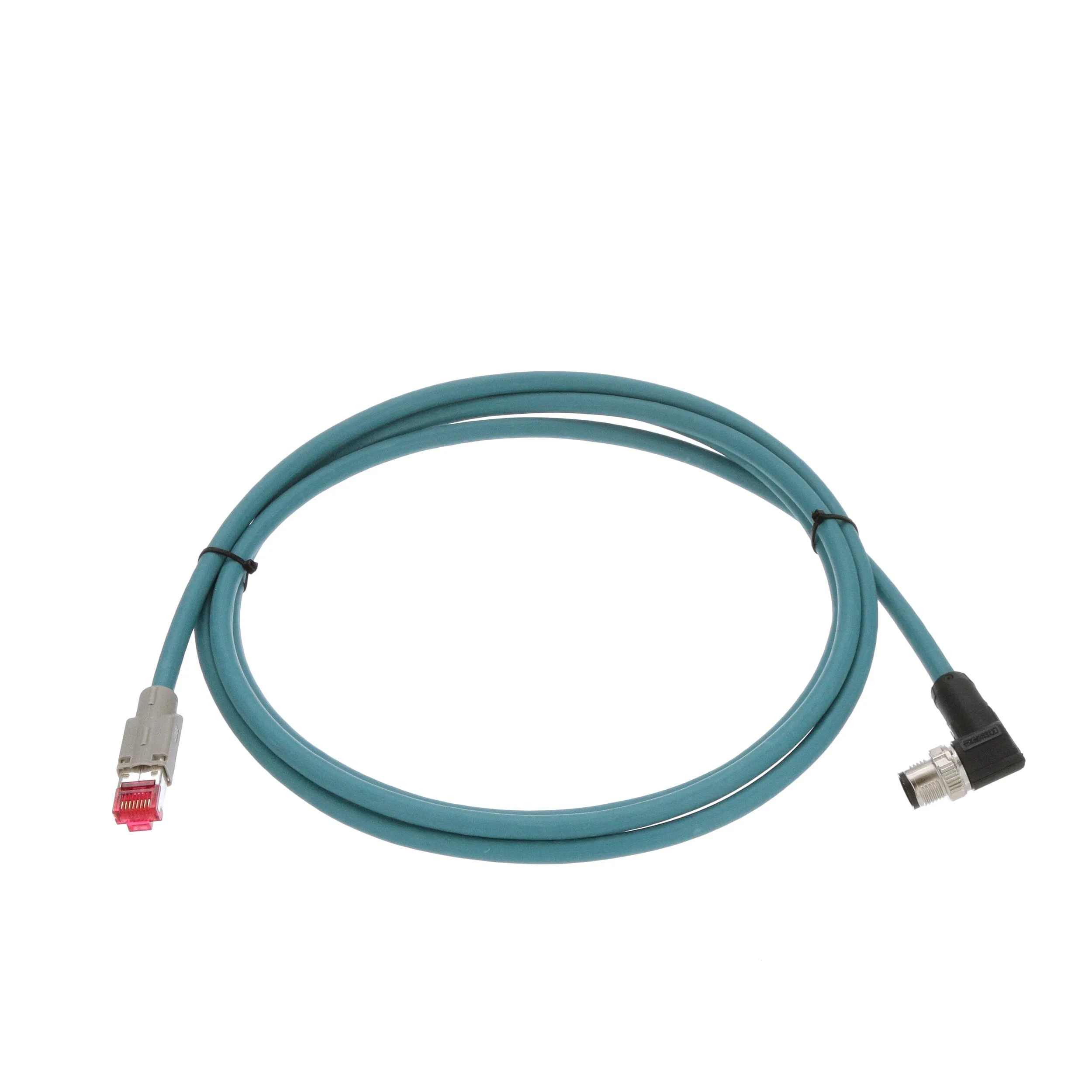

Phoenix Contact SAC and SACC Series – SPEEDCON Family of Sensor/Actuator Cabling and Industrial Connectors:

SPEEDCON is the next generation of M12 connectors, which have been an industrial standard for many years. With a simple “plug and 1⁄2 turn" SPEEDCON provides a time savings of 90% over the traditional M12 screw thread. The SPEEDCON coupling features a tactile stop to ensure proper alignment and guarantees a perfect connection in the field.

The SPEEDCON rapid interlock system is based on the principle of "Plug-and-Turn". It is 100-percent compatible with all M12 connectors. This means the cordsets are backwards compatible and can mate to fully threaded standard sensors. Reduce your assembly time by 90-percent. With just a half-turn, the SPEEDCON M12 rapid interlock system from Phoenix Contact creates a perfect connection. SPEEDCON from Phoenix Contact fulfills all electrical and mechanical properties of the classic M12 connector, as well as all common standards and requirements.

Features:

Easy and safe: 100% electrically tested plug-in components

Save time, thanks to installation with SPEEDCON fast locking system

Flexible solutions - configurable materials with variable cable types and cable lengths

Convenient: increased machine availability thanks to quick and easy diagnostics

Pin assignment, requirements and tests according to IEC 61076-2-101

IP65/67/68 degree of protection according to EN 60529

Vibration and shock resistance according to IEC 60512-6d
